> Автомобіль: PAJERO/MONTERO (1.12.1990-3.06.2003)
> Модель: 2500D-TURBO/SHORT WAGON /V24W/
> Група: СИДІННЯ /53/
> Підгрупа: ЗАДНІ СИДІННЯ /110/
Выберіть ЗАПЧАСТИНУ:
| 76075L |
STRIKER,RR SEAT,LH | | 76075R |
STRIKER,RR SEAT,RH | | 76086 |
DAMPER,RR SEAT CUSHION | | 76086F |
DAMPER,RR SEAT CUSHION | | 76169G |
SCREW,RR SEAT | | 76169S |
SCREW,RR SEAT | | 76173F |
WASHER,RR SEAT | | 76176C |
SNAP RING,RR SEAT | | 76179D |
PIN,RR SEAT | | 76191E |
BOLT,RR SEAT | | 76191K |
BOLT,RR SEAT | | 76191M |
BOLT,RR SEAT | | 76206A |
BACK ASSY,2ND SEAT | | 76215L |
BRACKET,2ND SEAT BACK HINGE,LH | | 76215R |
BRACKET,2ND SEAT BACK HINGE,RH | | 76256 |
COVER,2ND SEAT BACK | | 76262 |
COVER,2ND SEAT CUSHION | | 76275A |
CUSHION ASSY,2ND SEAT | | 76276 |
LEG,2ND SEAT,FR | | 76288 |
SPRING,2ND SEAT | | 76292 |
KNOB,2ND SEAT FOLDING LEVER | | 76297 |
LEVER,2ND SEAT FOLDING LOCK | | 76373 |
SPRING,2ND SEAT SUPPORT BRACKET | | 76398 |
CAP,2ND SEAT | | 76402 |
LEG,2ND SEAT |
|
|

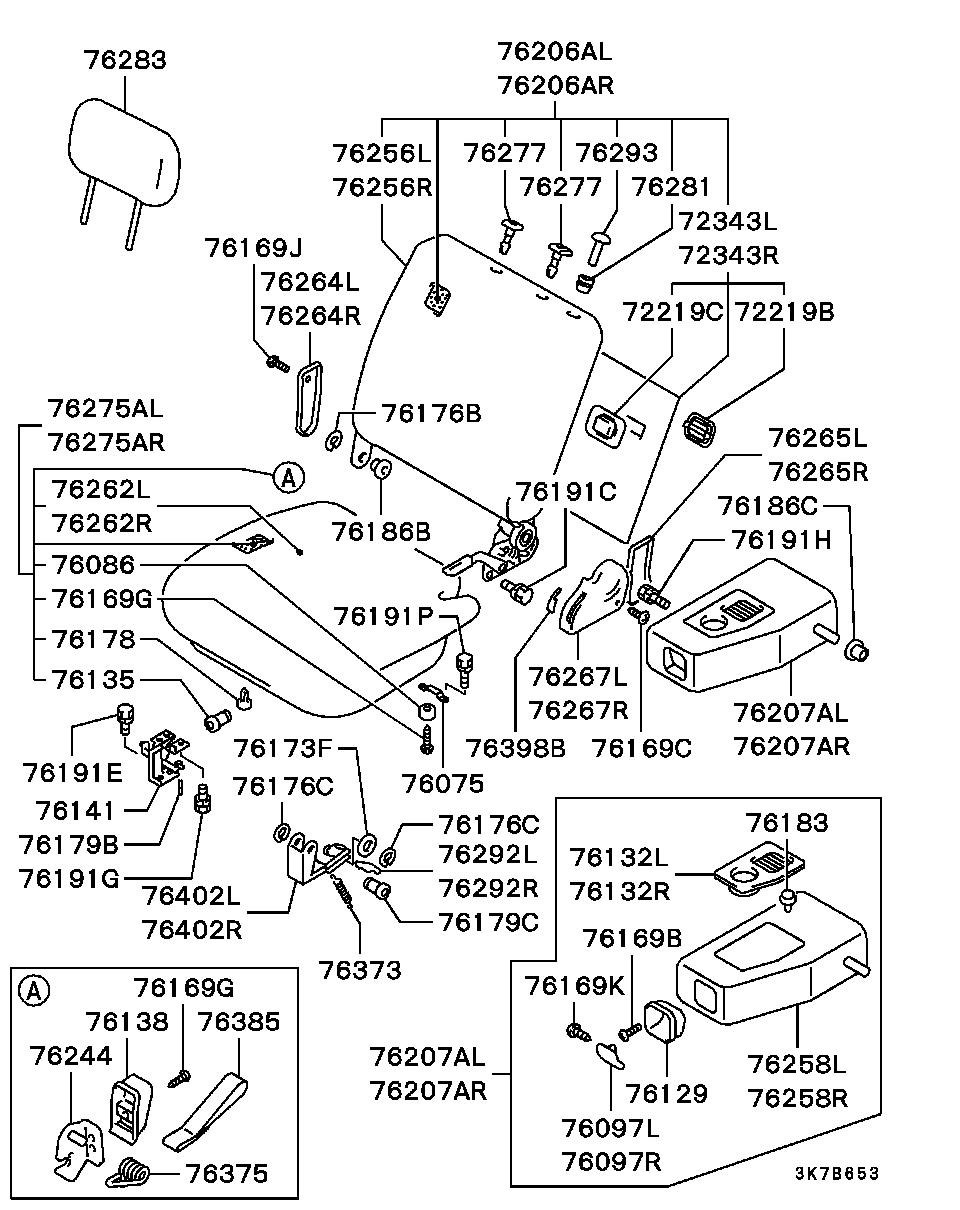

| | | BENCH TYPE
| | | Для вибору запчастини на схемі
збільште зображення.
|
|
| 72219B |
HOLDER,RR SHELF | | 72219C |
HOLDER,RR SHELF | | 72343L |
TRIM,2ND SEAT CUSHION BACK,LH | | 72343R |
TRIM,2ND SEAT CUSHION BACK,RH | | 76075 |
STRIKER,RR SEAT | | 76086 |
DAMPER,RR SEAT CUSHION | | 76097L |
KNOB,RR SEAT SIDE BACK,LH | | 76097R |
KNOB,RR SEAT SIDE BACK,RH | | 76129 |
GARNISH,RR SEAT SIDE BACK | | 76132L |
TRAY,2ND SEAT BACK,LH | | 76132R |
TRAY,2ND SEAT BACK,RH | | 76135 |
GUIDE,2ND SEAT CUSHION | | 76138 |
COVER,2ND SEAT CATCH | | 76141 |
LEG,2ND SEAT,CTR | | 76169B |
SCREW,RR SEAT | | 76169C |
SCREW,RR SEAT | | 76169G |
SCREW,RR SEAT | | 76169J |
SCREW,RR SEAT | | 76169K |
SCREW,RR SEAT | | 76173F |
WASHER,RR SEAT | | 76176B |
SNAP RING,RR SEAT | | 76176C |
SNAP RING,RR SEAT | | 76178 |
PLUG,RR SEAT | | 76179B |
PIN,RR SEAT | | 76179C |
PIN,RR SEAT | | 76183 |
CLIP,RR SEAT | | 76186B |
BUSHING,RR SEAT | | 76186C |
BUSHING,RR SEAT | | 76191C |
BOLT,RR SEAT | | 76191E |
BOLT,RR SEAT | | 76191G |
BOLT,RR SEAT | | 76191H |
BOLT,RR SEAT | | 76191P |
BOLT,RR SEAT | | 76206AL |
BACK ASSY,2ND SEAT,LH | | 76206AR |
BACK ASSY,2ND SEAT,RH | | 76207AL |
BACK ASSY,2ND SEAT SIDE,LH | | 76207AR |
BACK ASSY,2ND SEAT SIDE,RH | | 76244 |
CATCH,2ND SEAT CUSHION | | 76256L |
COVER,2ND SEAT BACK,LH | | 76256R |
COVER,2ND SEAT BACK,RH | | 76258L |
COVER,2ND SEAT BACK SIDE,LH | | 76258R |
COVER,2ND SEAT BACK SIDE,RH | | 76262L |
COVER,2ND SEAT CUSHION,LH | | 76262R |
COVER,2ND SEAT CUSHION,RH | | 76264L |
COVER,2ND SEAT FREE HINGE,LH | | 76264R |
COVER,2ND SEAT FREE HINGE,RH | | 76265L |
COVER,2ND SEAT HINGE,LH | | 76265R |
COVER,2ND SEAT HINGE,RH | | 76267L |
COVER,2ND SEAT RECLINING ADJUSTER,LH | | 76267R |
COVER,2ND SEAT RECLINING ADJUSTER,RH | | 76275AL |
CUSHION ASSY,2ND SEAT,LH | | 76275AR |
CUSHION ASSY,2ND SEAT,RH | | 76277 |
GUIDE,2ND SEAT HEADREST | | 76281 |
GUIDE,2ND SEAT RECLINING ADJUSTER KNOB | | 76283 |
HEADREST,2ND SEAT | | 76292L |
KNOB,2ND SEAT FOLDING LEVER,LH | | 76292R |
KNOB,2ND SEAT FOLDING LEVER,RH | | 76293 |
KNOB,2ND SEAT RECLINING ADJUSTER | | 76373 |
SPRING,2ND SEAT SUPPORT BRACKET | | 76375 |
SPRING,2ND SEAT TORSION | | 76385 |
STRAP,2ND SEAT CUSHION | | 76398B |
CAP,2ND SEAT | | 76402L |
LEG,2ND SEAT,LH | | 76402R |
LEG,2ND SEAT,RH |
| |
|
| | | SEPARATE TYPE
| | | Для вибору запчастини на схемі
збільште зображення.
|
|
|
|
