> Автомобіль: ECLIPSE CROSS (1.12.2020-1.11.2022)
> Модель: 2400 PLUG-IN HYBRID /GL3W/
> Група: КУЗОВ /42/
> Підгрупа: ДАХ /250/
Выберіть ЗАПЧАСТИНУ:
| 78008L |
COVER,ROOF RACK,FR LH | | 78008R |
COVER,ROOF RACK,FR RH | | 78009L |
COVER,ROOF RACK,RR LH | | 78009R |
COVER,ROOF RACK,RR RH | | 78018 |
COVER,ROOF RACK,CTR | | 78029L |
RACK,ROOF,LH | | 78029R |
RACK,ROOF,RH | | 78035 |
PANEL,ROOF | | 78050B |
CAP,ROOF RACK | | 78060B |
BRACKET,ROOF RACK | | 78060C |
BRACKET,ROOF RACK | | 78060D |
BRACKET,ROOF RACK | | 78060E |
BRACKET,ROOF RACK | | 78227B |
BOW,ROOF | | 78227C |
BOW,ROOF | | 78227D |
BOW,ROOF | | 78234 |
BOW,ROOF,CTR | | 78299 |
NUT,ROOF | | 78366B |
RAIL,ROOF,FR | | 78367 |
RAIL,ROOF,RR | | 78929 |
BOLT,ROOF CARRIER | | 78964B |
SEAL,ROOF RACK | | 78964C |
SEAL,ROOF RACK | | 78964D |
SEAL,ROOF RACK | | 78964E |
SEAL,ROOF RACK |
|
|

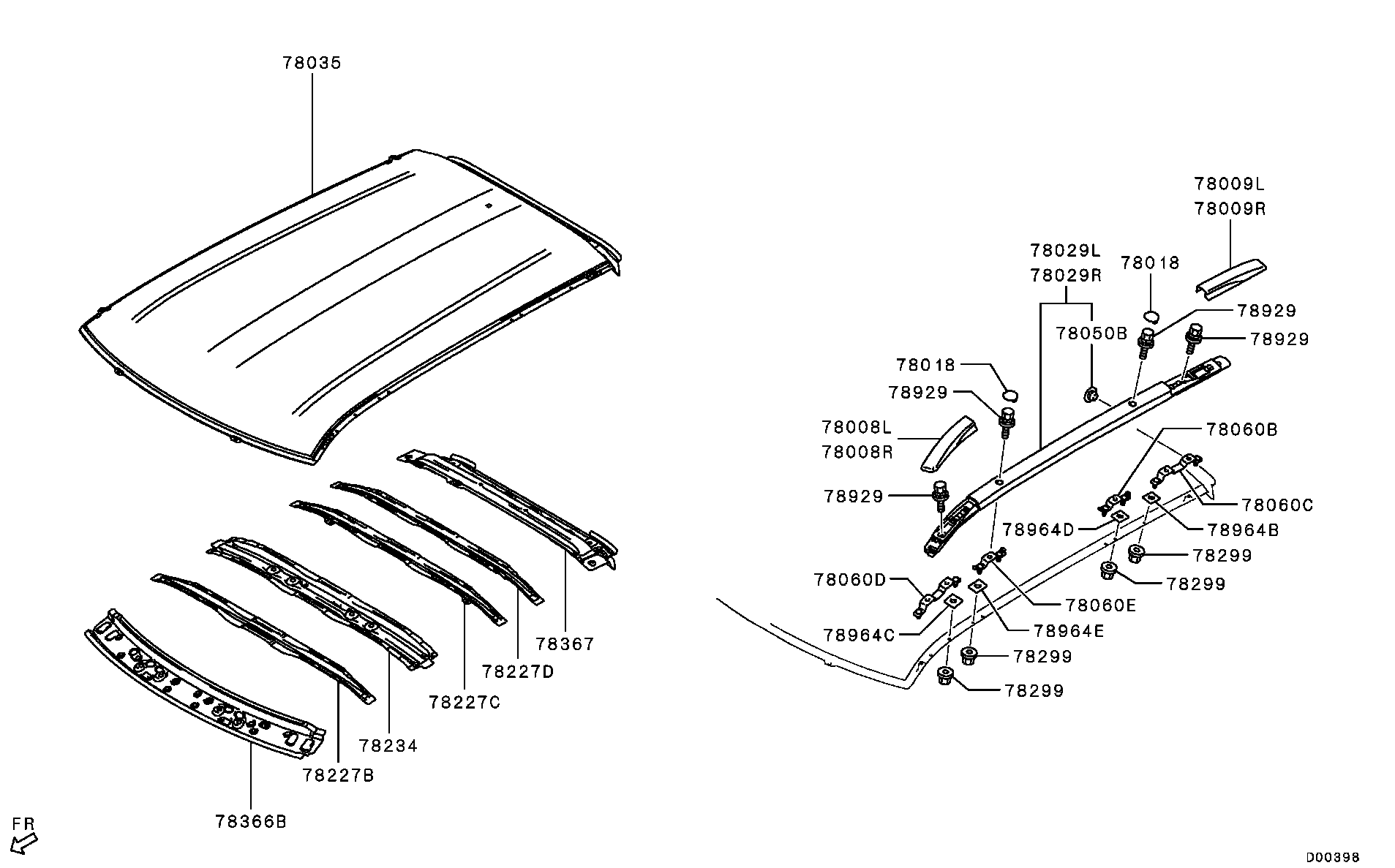

| | | ROOF PANEL..W/O SUNROOF
| | | Для вибору запчастини на схемі
збільште зображення.
|
|
| 78008L |
COVER,ROOF RACK,FR LH | | 78008R |
COVER,ROOF RACK,FR RH | | 78009L |
COVER,ROOF RACK,RR LH | | 78009R |
COVER,ROOF RACK,RR RH | | 78018 |
COVER,ROOF RACK,CTR | | 78029L |
RACK,ROOF,LH | | 78029R |
RACK,ROOF,RH | | 78035 |
PANEL,ROOF | | 78050B |
CAP,ROOF RACK | | 78060B |
BRACKET,ROOF RACK | | 78060C |
BRACKET,ROOF RACK | | 78060D |
BRACKET,ROOF RACK | | 78060E |
BRACKET,ROOF RACK | | 78234 |
BOW,ROOF,CTR | | 78299 |
NUT,ROOF | | 78354L |
RAIL,ROOF SIDE,LH | | 78354R |
RAIL,ROOF SIDE,RH | | 78366B |
RAIL,ROOF,FR | | 78366C |
RAIL,ROOF,FR | | 78367 |
RAIL,ROOF,RR | | 78929 |
BOLT,ROOF CARRIER | | 78964B |
SEAL,ROOF RACK | | 78964C |
SEAL,ROOF RACK | | 78964D |
SEAL,ROOF RACK | | 78964E |
SEAL,ROOF RACK |
| |
|

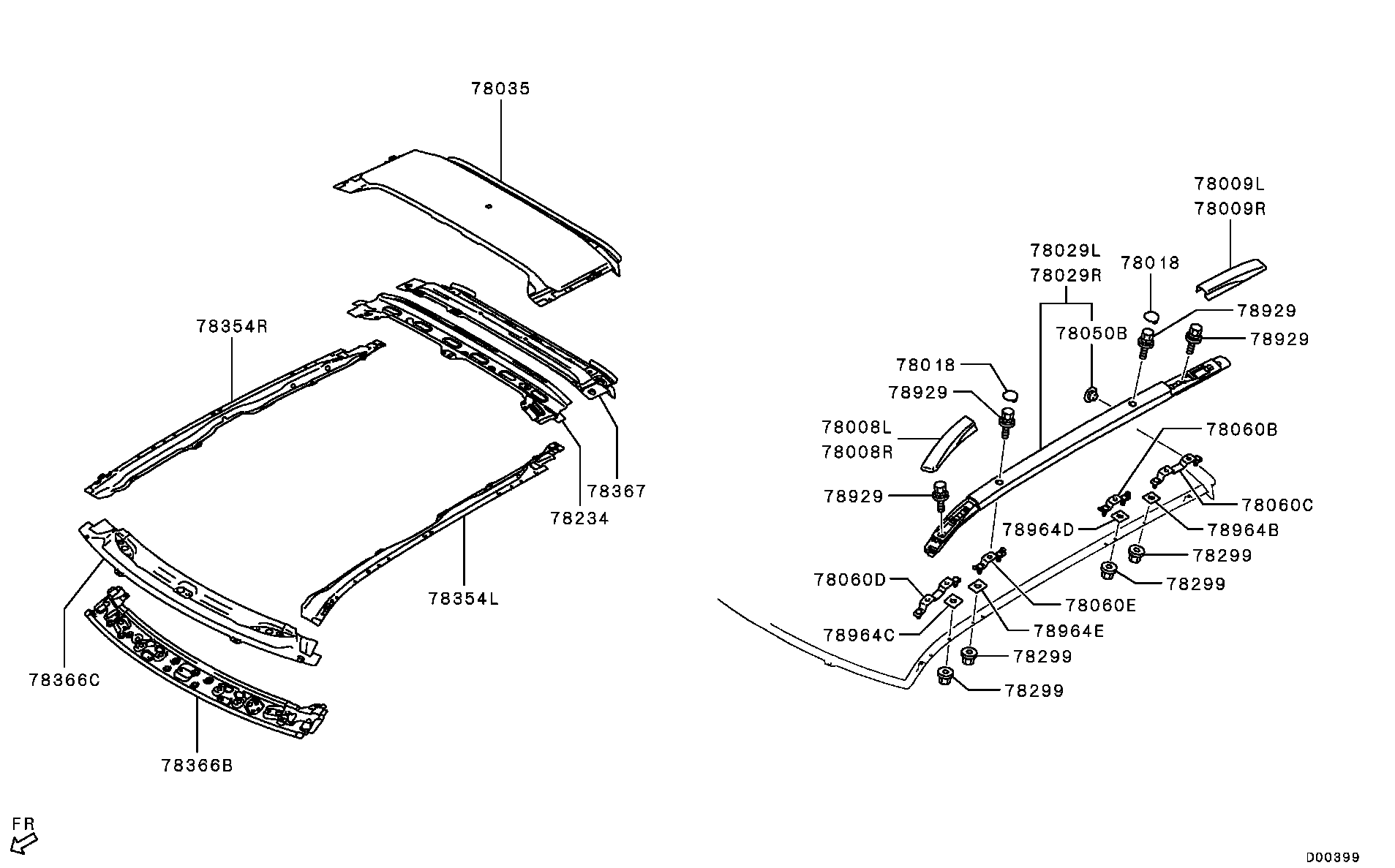

| | | ROOF PANEL..W/SUNROOF
| | | Для вибору запчастини на схемі
збільште зображення.
|
|
| 71127 |
KM206 | | 71367 |
TAPE,SUNROOF SEAL,RR | | 78078 |
| | 78085L |
INTMT WIPER RELAY | | 78085R |
JACK SET | | 78109C |
SCREW,ROOF | | 78297B |
CLIP,ROOF | | 78297C |
CLIP,ROOF | | 78298 |
BOLT,ROOF | | 78315 |
FASTENER,ROOF SIDE WINDOW | | 78557 |
PAD,SUNROOF | | 78557B |
PAD,SUNROOF | | 78608L |
BRACKET,SUNROOF,FR LH | | 78608R |
BRACKET,SUNROOF,FR RH | | 78613 |
DEFLECTOR,SUNROOF | | 78627A |
| | 78641L |
RAIL,SUNROOF LID GUIDE,LH | | 78641R |
RAIL,SUNROOF LID GUIDE,RH | | 78656 |
WEATHERSTRIP,SUNROOF LID | | 78687 |
WEATHERSTRIP,SUNROOF LID OPENING | | 78690 |
GLASS,ROOF LID WINDOW,RR | | 78911 |
WEATHERSTRIP,ROOF LID OPENING,FR |
| |
|

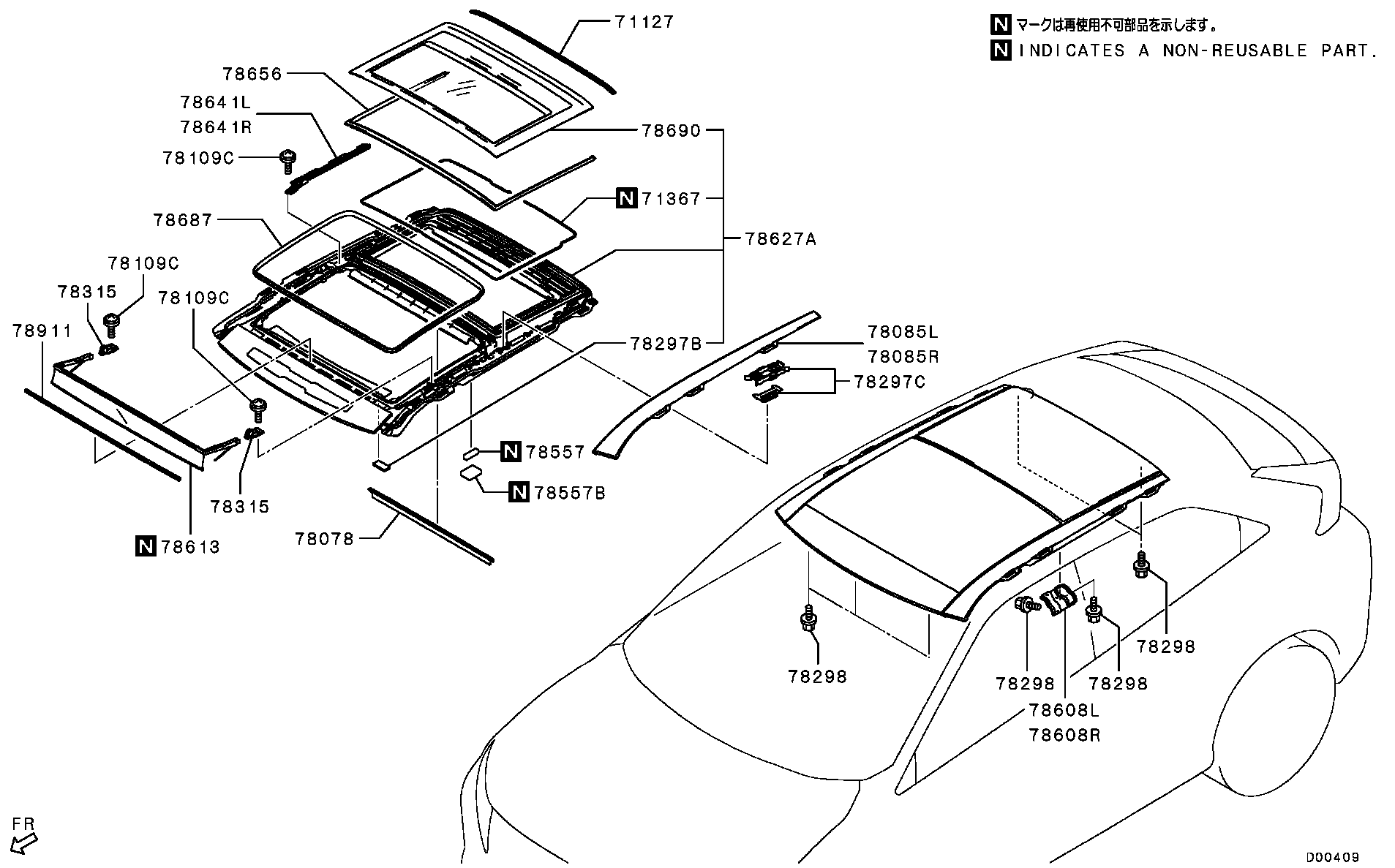

| | | SUNROOF..INSTALLING PARTS,ETC.
| | | Для вибору запчастини на схемі
збільште зображення.
|
|
| 78109B |
SCREW,ROOF | | 78109C |
SCREW,ROOF | | 78109D |
SCREW,ROOF | | 78109E |
SCREW,ROOF | | 78208L |
BLIND,ROOF,FR LH | | 78208R |
BLIND,ROOF,FR RH | | 78297B |
CLIP,ROOF | | 78500 |
GLASS,ROOF | | 78535L |
I/PANEL,GLOVE BOX & PARCEL TRAY | | 78535R |
| | 78536L |
| | 78536R |
INNER PARTS OF ADJUSTER | | 78557C |
PAD,SUNROOF | | 78561B |
KM201 (T/M CASE) | | 78561C |
KM201 (T/M CASE) | | 78602 |
BRACKET,SUNROOF | | 78627 |
HOUSING,SUNROOF | | 78631L |
LINK,SUNROOF DEFLECTOR,LH | | 78631R |
LINK,SUNROOF DEFLECTOR,RH | | 78632 |
MOTOR,SUNROOF DRIVE | | 78643 |
REINFORCEMENT,SUNROOF PANEL | | 78655 |
SUNSHADE,SUNROOF | | 78655C |
SUNSHADE,SUNROOF | | 78728L |
I/PANEL PAD,GLOVEBOX,ETC.(W/O AIR BAG) | | 78728R |
I/PANEL PAD,GLOVEBOX,ETC.(W/O KNEE PROT) |
| |
|

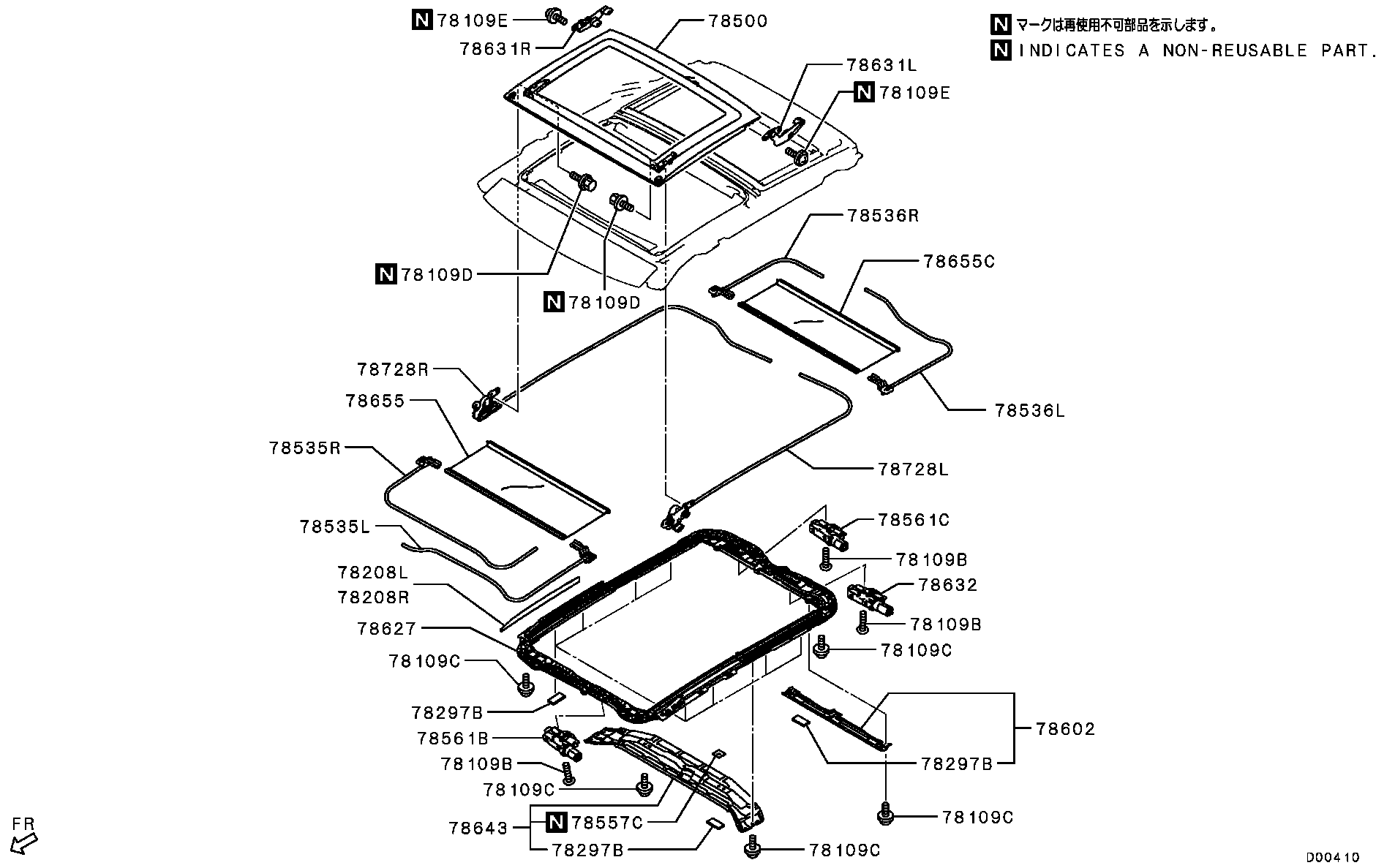

| | | SUNROOF..DISASSEMBLED PARTS,ETC.
| | | Для вибору запчастини на схемі
збільште зображення.
|
|
|
|
